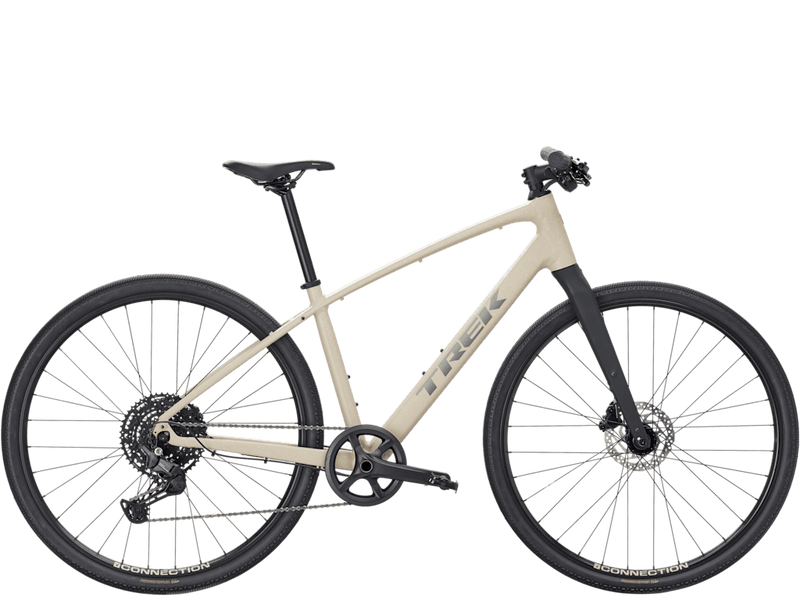

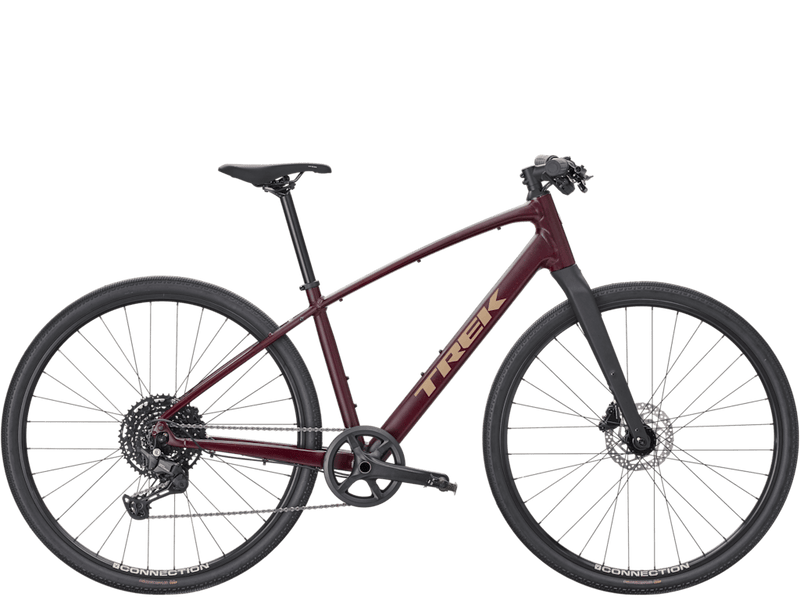

FX Sport AL 3 is a lightweight, versatile aluminum bike, perfect for exploring the path less traveled. It comes ready for anything, with a reliable and light Alpha Gold Aluminum frame, 10-speed Shimano CUES shifting, go-anywhere Bontrager Girona gravel tires, and hydraulic disc brakes.
Specs:
- Frameset
- Frame: Alpha Gold Aluminum, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR
- Fork: FX carbon, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR
- Wheels
- Front Hub: Formula DC-20, alloy, 6-bolt, 100x5mm
- Front Skewer: 139x5mm bolt-on
- Rear Hub: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
- Rear Skewer: 152x5mm QR
- Rim: Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
- Tire: Bontrager Girona Comp, wire bead, 60 tpi, 700x42mm

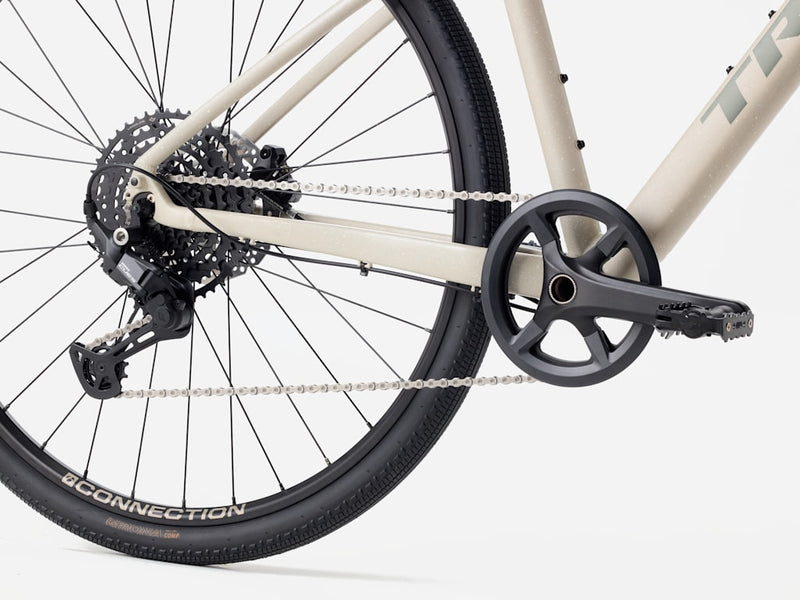

- Drivetrain
- Shifter: Shimano CUES U6000 w/optical gear display, 10 speed
- Rear derailleur: Shimano CUES U6000 GS
- Crank:
- Size: XS, S, M: Prowheel alloy, 40T narrow-wide ring, 170mm length
- Size: L, XL: Prowheel alloy, 40T narrow-wide ring, 175mm length
- Cassette: Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed
- Chain: Shimano LG500, 9/10/11 speed
- Pedal: Wellgo nylon body, alloy cage
- Max Chainring Size: 1x: 50T, 2x: 50/34
- Components
- Saddle: Verse Short, chromoly rails, 145mm width
- Seatpost:
- Size XS, S, M: Bontrager alloy, 27.2mm, 12mm offset, 330mm length
- Size L, XL: Bontrager alloy, 27.2mm, 12mm offset, 400mm length

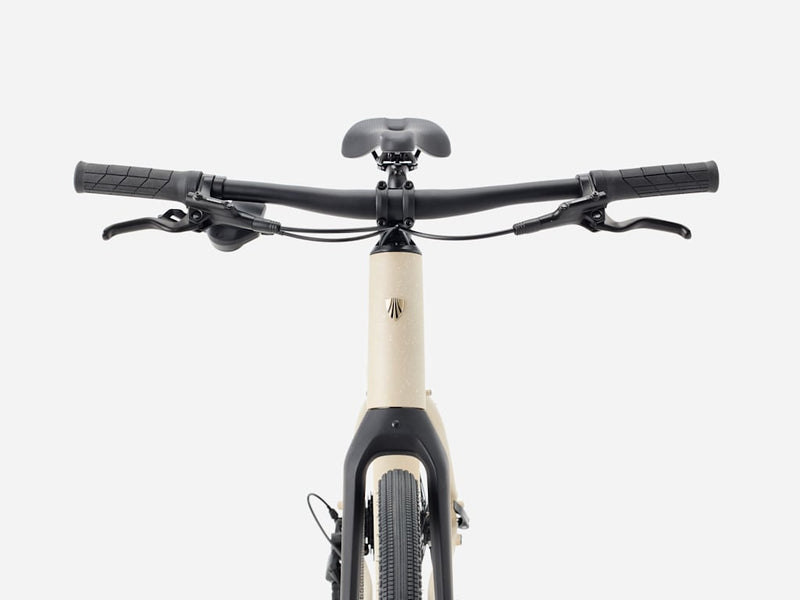

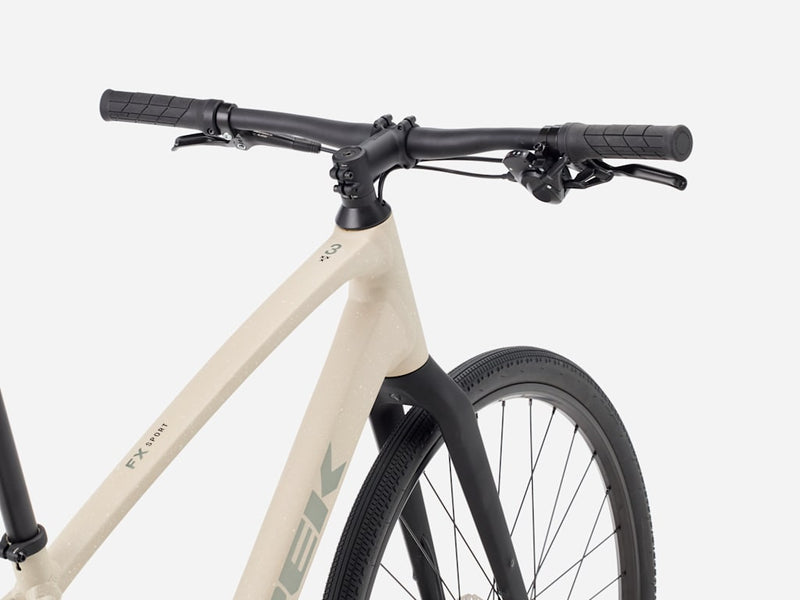

- Handlebar:
- Size XS, S: Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 600mm width
- Size M, L: Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 660mm width
- Size XL: Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 690mm width
- Grips: Trek Line Comp, nylon lock-on
- Stem:
- Size XS, S: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
- Size M, L: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
- Size XL, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
- Brake: Shimano hydraulic disc, MT201 lever, UR300 caliper
- Brake Rotor: Shimano RT26, 6-bolt, 160mm
- Weight
- M - 11.10 kg / 24.48 lbs
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
